YMC-Pack R&D series 系列研究開發套柱
|
| |
YMC-Pack R&D series 系列研究開發套柱每套包括一支半制備柱和一支分析柱，兩支色譜柱的填料均采用高質量的YMC•GEL填料，并且采用相同批次生產的產品和完全相同的選擇性的產品。分析柱的實驗條件可以直接放大到制備，分離結果可完全再現，這樣就使分離工作變得簡單和快速。YMC-Pack
R&D series 系列研究開發套柱具有多種填料和規格，包括：ODS-A (C18)、Polymer C18、SIL (硅膠)、聚酰胺和蛋白/多肽分離柱等。
|

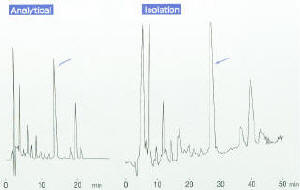

萜烯類化合物的分離
|
 |
|
Analytical Codition: |
|
Column |
ODS-A/R, 5µm/120Å, 250x4.6mmI.D. |
|
Eluent |
Acetonitrile/lWater (65/35) |
|
Detection |
RI x 64 |
|
Flow rate |
1.0 mL/min |
|
Pressure |
120 kgf/cm2 |
|
Injection |
50µL (1mg) |
|
|
|
Isolation Codition: |
|
Column |
ODS-A/R, 5µm/120Å, 250x20mmI.D. |
|
Eluent |
Acetonitrile/lWater (65/35) |
|
Detection |
UV at 298nm,
2.0AUFS |
|
Flow rate |
9.9 mL/min |
|
Pressure |
180 kgf/cm2 |
|
Injection |
1 mL (20mg) |
|
|
 |
|

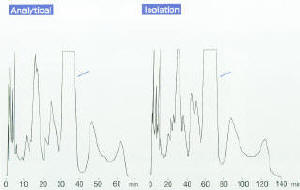

長春花屬生物堿的分離
|
 |
|
Analytical Codition: |
|
Column |
ODS-A/R, 5µm/120Å, 250x6.0mmI.D. |
|
Eluent |
0.1M (NH4)2CO3/Acetonitrile (60/40) |
|
Detection |
RI x 64 |
|
Flow rate |
3.0 mL/min |
|
Pressure |
30 kgf/cm2 |
|
Injection |
50µL (2.5mg) |
|
|
|
Isolation Codition: |
|
Column |
ODS-A/R, 5µm/120Å, 250x50mmI.D. |
|
Eluent |
Acetonitrile/lWater (65/35) |
|
Detection |
UV at 298nm,
2.0AUFS |
|
Flow rate |
125 mL/min |
|
Pressure |
30 kgf/cm2 |
|
Injection |
3.8 mL
(190mg) |
|
|
 |
|
|
|
YMC-Pack R&D series 系列研究開發套柱產品規格
|
| |
YMC-Pack R&D series 系列研究開發柱套裝
|
|
|
填 料 |
粒徑(µm) |
孔徑(Å) |
分析柱 (R) |
制備柱 (D) |
產品編號 |
優惠價(人民幣)注 |
ODS-A
|
S-5 |
120 |
4.6x150mm
4.6x250mm |
20x150mm
20x250mm |
AA12S05-RD06
AA12S05-RD07 |
|
|
|
|
|
6.0x250mm |
30x250mm |
AA12S05-RD27 |
|
|
|
S-10 |
120 |
4.6x250mm |
20x250mm |
AA12S11-RD07 |
|
|
|
|
|
6.0x250mm |
30x250mm |
AA12S11-RD27 |
|
|
|
S-15 |
120 |
4.6x250mm |
20x250mm |
AA12S16-RD07 |
|
|
|
|
|
6.0x250mm
6.0x250mm |
30x250mm
50x250mm |
AA12S16-RD27
AA12S16-RD31 |
|
Polymer C18
|
S-10 |
120 |
4.6x300mm |
20x300mm |
PC99S10-RD08 |
|
SIL
|
S-5 |
120 |
4.6x150mm
4.6x250mm |
20x150mm
20x250mm |
SL12S05-RD06
SL12S05-RD07 |
|
|
|
|
|
6.0x250mm |
30x250mm |
SL12S05-RD27 |
|
|
|
S-10 |
120 |
4.6x250mm |
20x250mm |
SL12S11-RD07 |
|
|
|
|
|
6.0x250mm |
30x250mm |
SL12S11-RD27 |
|
|
|
S-15 |
120 |
4.6x250mm |
20x250mm |
SL12S16-RD07 |
|
|
|
|
|
6.0x250mm
6.0x250mm |
30x250mm
50x250mm |
SL12S16-RD27
SL12S16-RD31 |
|
SIL-06
|
S-5 |
60 |
4.6x150mm
4.6x250mm |
20x150mm
20x250mm |
SL06S05-RD06
SL06S05-RD07 |
|
|
|
|
|
6.0x250mm |
30x250mm |
SL06S05-RD27 |
|
|
|
S-10 |
60 |
4.6x250mm |
20x250mm |
SL06S11-RD07 |
|
|
|
|
|
6.0x250mm |
30x250mm |
SL06S11-RD27 |
|
|
|
S-15 |
60 |
4.6x250mm |
20x250mm |
SL06S16-RD07 |
|
|
|
|
|
6.0x250mm
6.0x250mm |
30x250mm
50x250mm |
SL06S16-RD27
SL06S16-RD31 |
|
PolyamineⅡ
|
S-5 |
120 |
4.6x250mm |
20X250mm |
PB12S05-RD07 |
|
PROTEIN-RP
|
S-5 |
--- |
4.6x250mm |
20x250mm |
PR99S05-RD07 |
|
|
YMC-Pack Research Columns YMC系列研究柱(分析柱)
|
|
|
填 料 |
粒徑(µm) |
孔徑(Å) |
柱規格(內徑x長度) |
產品編號 |
優惠價(人民幣)注 |
ODS-A
|
S-5 |
120 |
4.6x150mm
4.6x250mm |
AA12S05-1546WTX
AA12S05-2546WTX |
|
|
|
|
|
6.0x250mm |
AA12S05-2546WTX |
|
|
YMC-Pack Development Columns YMC系列開發柱(制備柱)
|
|
|
填 料 |
粒徑(µm) |
孔徑(Å) |
柱規格(內徑x長度) |
產品編號 |
優惠價(人民幣)注 |
ODS-A
|
S-5 |
120 |
20x150mm
20x250mm |
AA12S05-1520WTX
AA12S05-2520WTX |
|
|
|
|
|
30x250mm |
AA12S05-2530WTX |
|
|
YMC-Pack R&D Columns YMC系列開發柱的保護柱
|
|
|
填 料 |
粒徑(µm) |
孔徑(Å) |
柱規格(內徑x長度) |
產品編號 |
優惠價(人民幣)注 |
ODS-A
|
S-5 |
120 |
20x 50mm
20x 75mm |
AA12S05-0520WTGX
AA12S05-L520WTGX |
|
|
注：價格可能會隨原廠供貨、匯率和關稅的變化，本公司保留對價格的最終解釋，購前敬請垂詢
|
